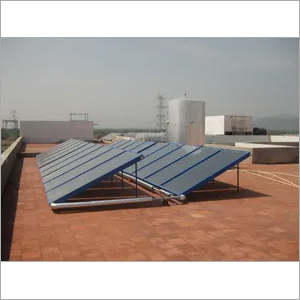

Solar Heater

Next > >

Solar Heater

<< Previous

Send Inquiry

Product Code : SH-18

Brand Name : OMEGA SOLAR

Product Description

Being one of the prominent names in this field, we are affianced in manufacturing and supplying an optimum quality array of Solar Heater. For heat required premises, the provided heater is highly demanded among the clients. By dedicated team of workforce, the offered heater is assembled with precision using top grade components like indicators, switches coil, cover structure with the help of sophisticated technology. Additionally, our valuable patrons can easily purchase this Solar Heater at cost effective prices from us.

Features:

Precisely engineered
Eco friendly
Perfect working
Long life

Product details

Temperature Achieved	60 to 85 C
Collector Box	ISI Standard aluminum channels
Glazing	High Transmission Toughened Glass of 4mm thick
Riser	Copper - Copper Tig welding Fin and Tubes with solar selective coating
Header	Copper pipe
Insulation	Resin Bounded Glass wool of 4 inch thickness.
Electric Backup	Incorporated

Usage Chart

Capacity(Lpd)	For A Family Of	Temp C	Utility Points (Outlets)
100	1 - 3	60 - 75	2
125	1 - 5	60 - 75	3
200	5 - 8	60 - 75	4
250	7 - 9	60 - 75	5
300	9 - 12	60 - 75	6
375	12 - 15	60 - 75	7
500	15 - 20	60 - 75	10
